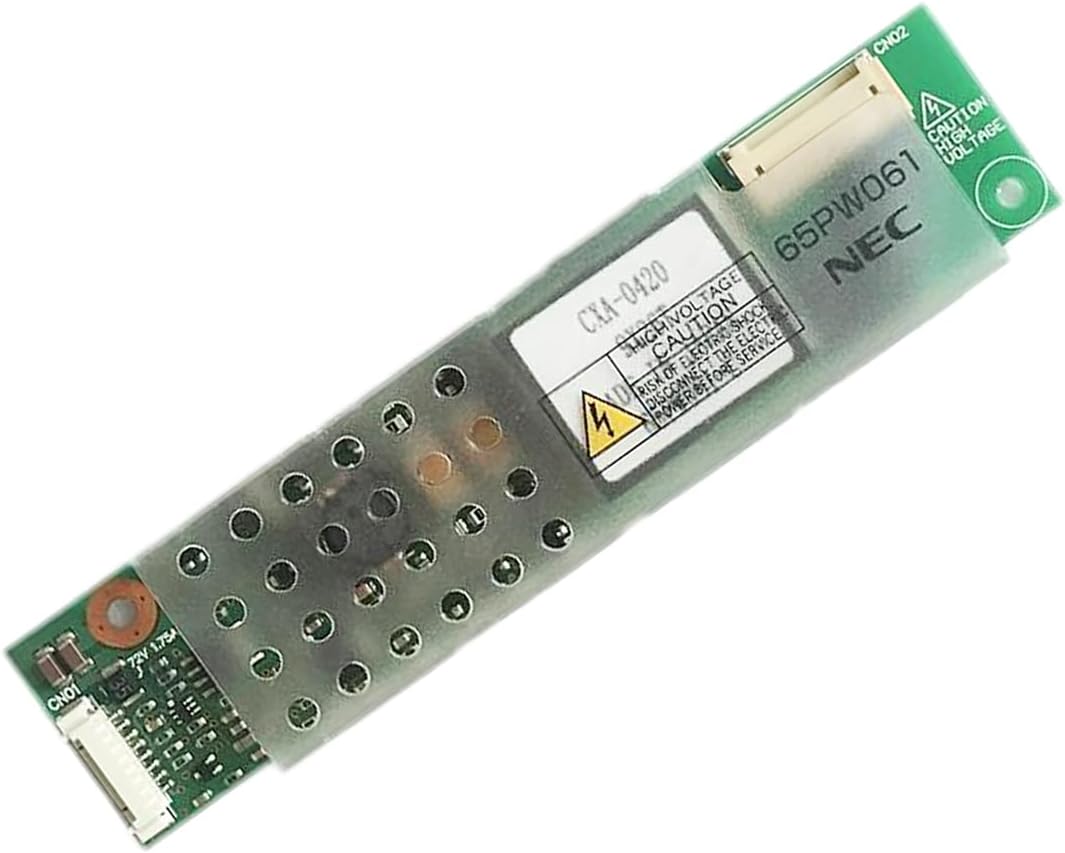

LCD Inverter Board 65PW061 CXA-0420 PCU-P213C, 2-Output CCFL Backlight Inverter with PWM Dimming & Alarm Function – for 5 to 8 Inch Panels

Product Description:The LCD Inverter Board 65PW061 CXA-0420 PCU-P213C is a compact and efficient CCFL backlight inverter designed for LCD panels ranging from 5 to 8 inches. With a dual-output design, it ensures stable backlight performance for two lamps.Equipped with PWM dimming and resistance dimming control, it provides smooth brightness adjustment to suit different display requirements. The inverter features an alarm signal function to detect lamp failure, along with a shutdown safety system for added reliability.Its remote ON/OFF function allows easy integration with external circuits, while the silicone-coated high-voltage area ensures long-term durability and dust resistance. Measuring only 113 × 25 × 8.5 mm and weighing 20g, it offers high performance in a lightweight, space-saving design.This board is ideal for LCD display maintenance, panel repair, and custom display applications.

• Model Compatibility: Designed for LCD panels with inverter models 65PW061, CXA-0420, PCU-P213C
• Applicable Panel Size: Supports 5–8 inch LCD displays. Compact & Lightweight: Dimensions 113 × 25 × 8.5 mm, weight 20g. Wide Input Voltage: 4.5V to 13.2V input range.
• Dual Output Design: Provides two high-voltage outputs for CCFL backlight lamps.
• Brightness Control: Built-in dimming function (Pulse Width Modulation or resistance control).
• Alarm & Shutdown Function: Includes lamp-out detection, alarm output (5V), and auto shutdown safety.
• Remote ON/OFF: Supports external control for flexible operation.
• High Reliability: Silicone coating on high-voltage areas for dust protection.
