MAPLE ACE UCP208 Pillow Block Bearing 40mm Bore, 2-Bolt, Self-Aligning, R3 Triple Lip Seal, Heavy Duty (Qty 2)

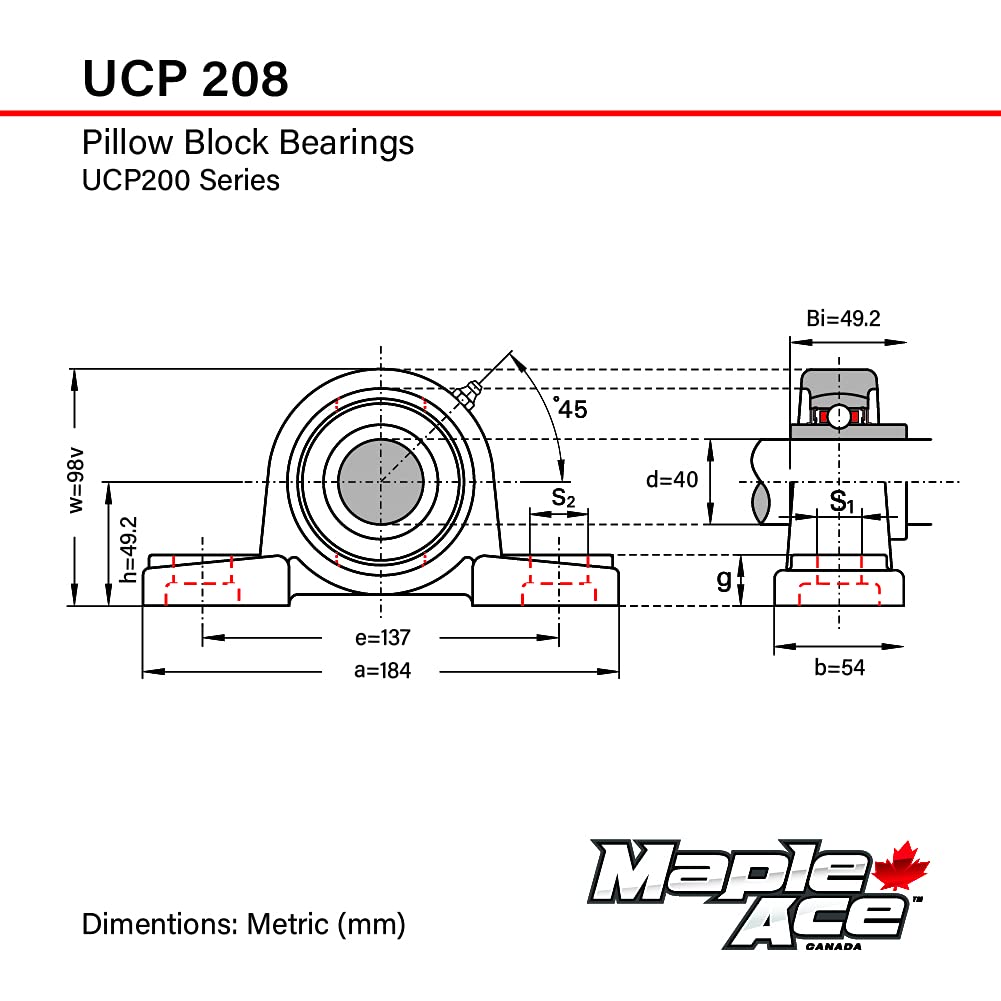

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface for securing the shaft. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. - Specification: Item UCP208R3, Series UCP200, Bearing Number UC208R3, Housing Number P208, Bearing Bore Diameter Metric 40 mm, Bearing Bore Diameter Inch 1.5748 in, Bearing Width Inner Ring Matric 49.20 mm, Bearing Width Inner Ring Inch 1.937 in, Bolt Size 1/2 in Number of Bolts 2, Bolt Hole Center to Center (e) Matric 137 mm, Bolt Hole Center to Center (e) Inch 5.394 in, Overall Length (a) Matric 184 mm, Overall Length (a) Inch 7.244 in, Overall Height (w) Matric 98 mm, Overall Height (w) Inch 3.858 in, Overall Width (b) Matric 54 mm, Overall Width (b) Inch 2.125 in, Mounting Surface to Shaft Center (h) Matric 49.20 mm, Mounting Surface to Shaft Center (h) Inch 1.937 in, Dynamic Load Rating Cr 30700 N, Static Load Rating Cor 19000 N, Limiting Speed 4800 r/min, Bearing Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 1.750 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
